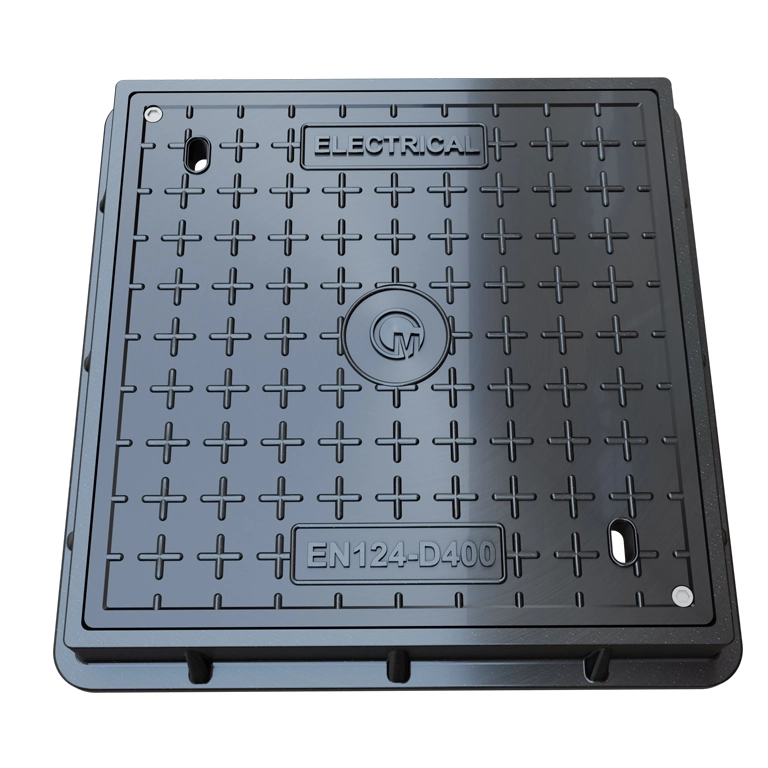

Composite D400 Manhole Cover 550x550 Inspection Cover with integral lifting keyholes. CLEAR OPENING: 550 x 550mm. LID DEPTH 50mm. FRAME DIMENSIONS: 705 x 705x100. Weight 53 KG. Ideal for sewer manhole and valve chamber applications in road sites, streets, business campuses, and industrial parks with
Composite D400 Manhole Cover 550x550 Inspection Cover with integral lifting keyholes. CLEAR OPENING: 550 x 550mm. LID DEPTH 50mm. FRAME DIMENSIONS: 705 x 705x100. Weight 53 KG. Ideal for sewer manhole and valve chamber applications in road sites, streets, business campuses, and industrial parks with cars and lorry traffic.
Rugged structure
Exclusive composite formulation plastic manhole cover, 75% lighter than cast iron manhole cover of the same size.
Durable
The Composite access cover is 60% more durable than FRP covers. Allows maxim temperature of 140 degrees C.
Feelings
The touching feel is like a coated plastic, which looks like a mixture of cast iron and concrete.
Customization
Tailored colors, dimensions, designs, and nameplates are available via special orders
Application
Sewer System and valve chamber in Road sites, campus, a street with car, lorry, and truck traffics
| Model | MS202D Composite Manhole Cover | |
| Load Capacity | D400 40Ton | |
  | D | 600x600 mm (1.97'x1.97') |
| O | 550x550 mm (1.8'x1.8') | |
| F | 705x705 mm (2.31'x2.31') | |
| h | 50 mm (1.97") | |
| H | 100 mm (3.94") | |
| Weight | 53kg (116.8 lbs) | |
